Instructie foto's en films
View an instruction film about planting with the waterboxx
 |

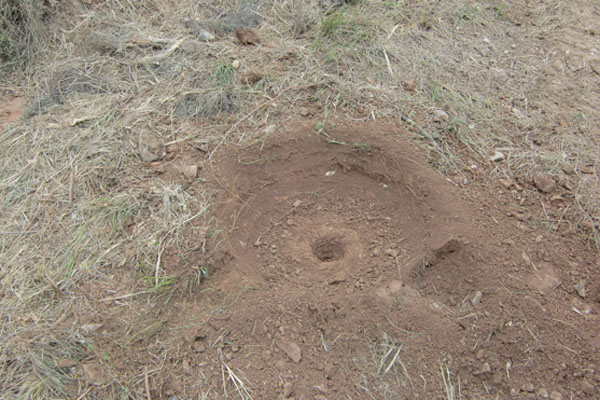

Make horizontal planting places | |
 |

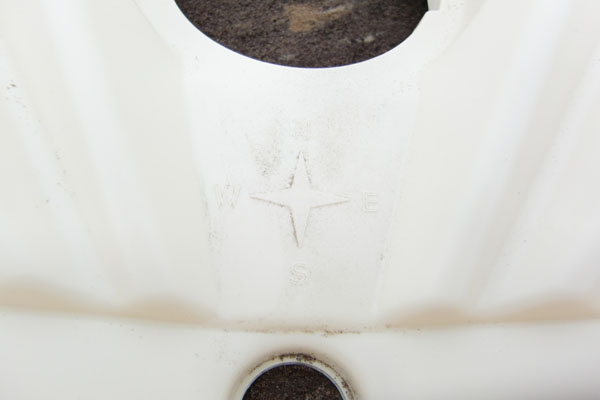

Define the North with the help of the compass design | |
 |

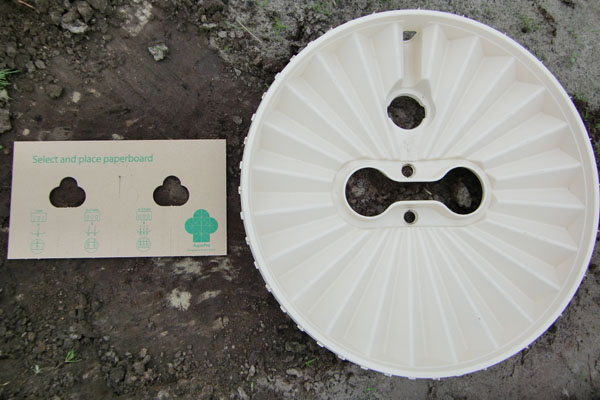

After defining the North, place the paper bord in the same direction as the central opening of the cover | |
 |
Determine the place of the planting holes | |
 |

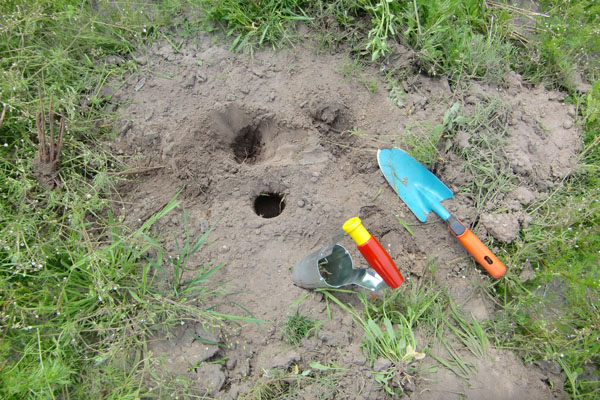

Making the planting hole with a shovel or a hollow awl | |
 |

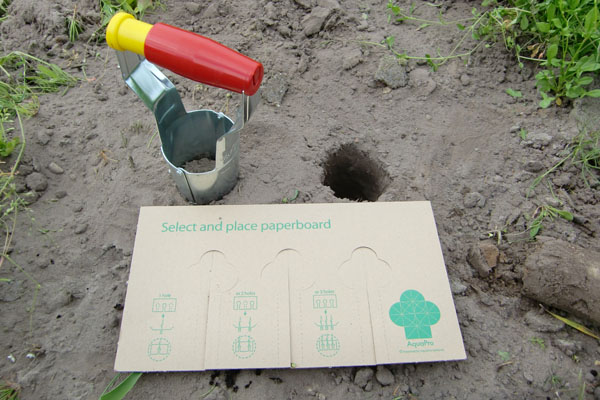

The hollow awl makes the best planting hole | |
 |
Select two trees to plant with good roots | |
 |

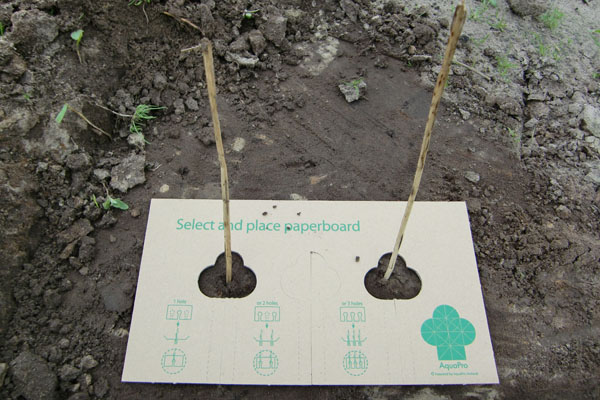

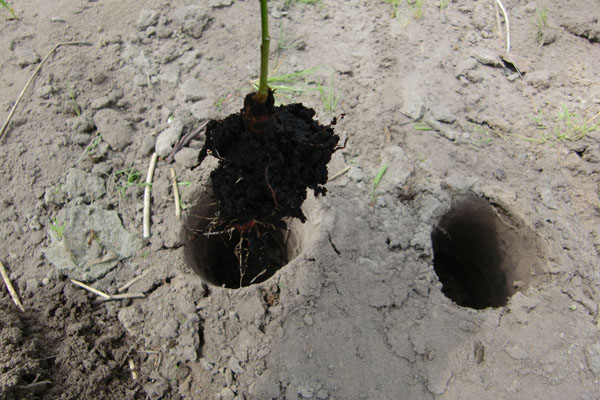

Plant the two trees | |
 |

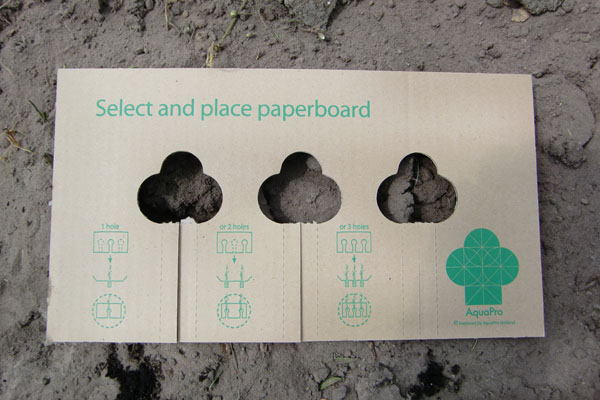

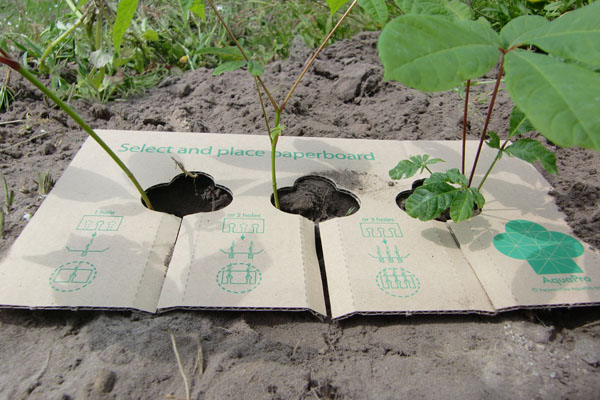

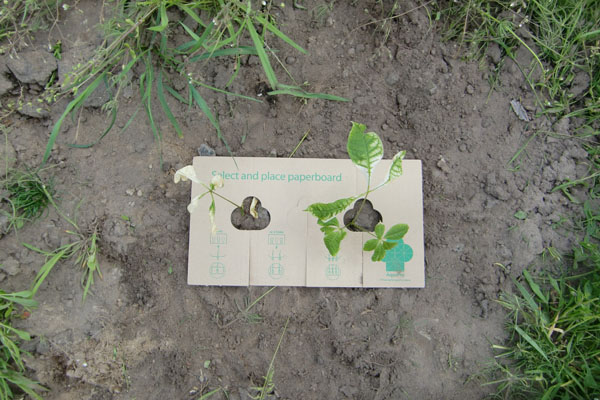

Put on the paper board to prevent evaporation | |
 |

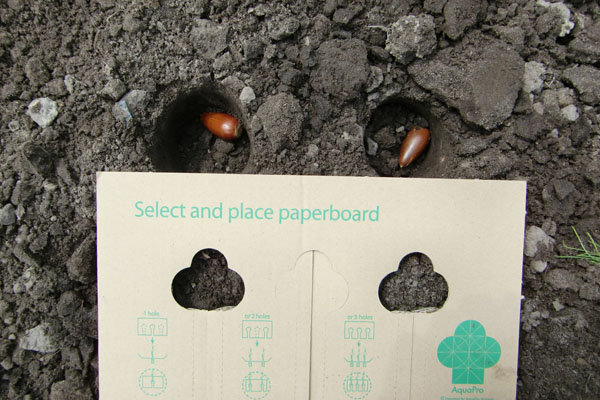

You can also sow two seeds | |
 |

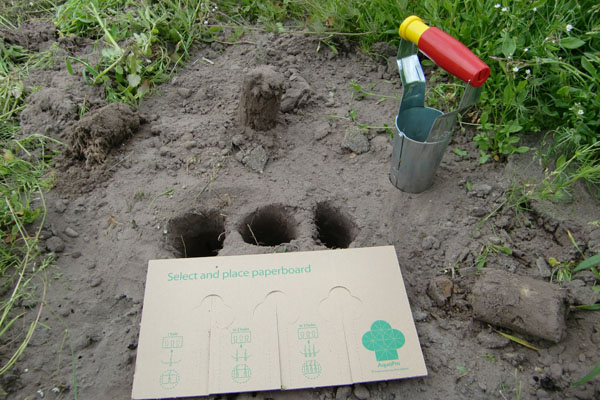

You can even make 3 planting holes | |
 |

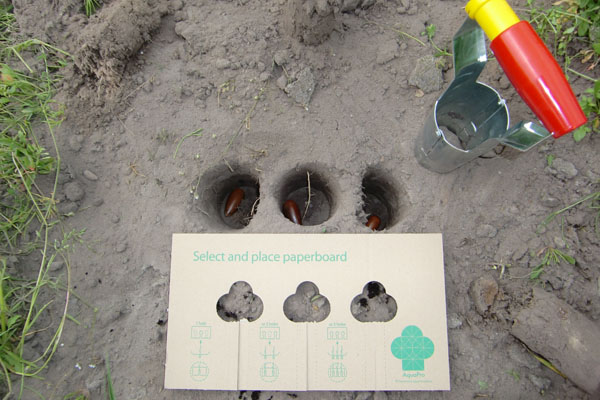

And sow three seeds if you have seed with a low germination rate | |
 |

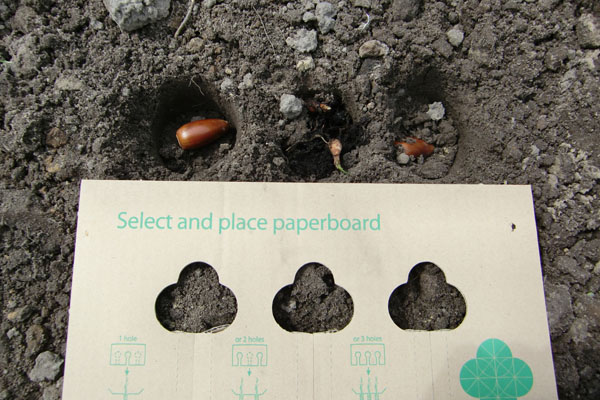

Three seeds detail | |
 |

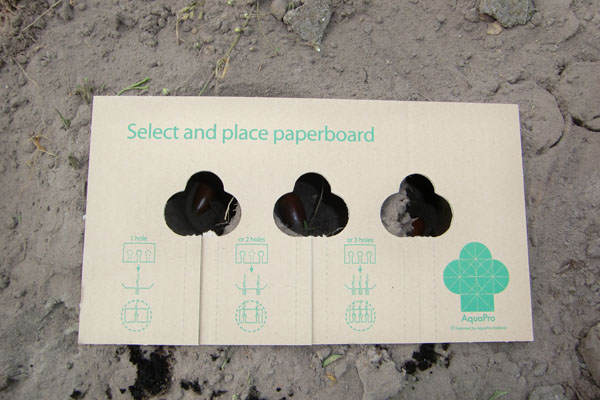

Three seeds covered with sand and paper board | |
 |

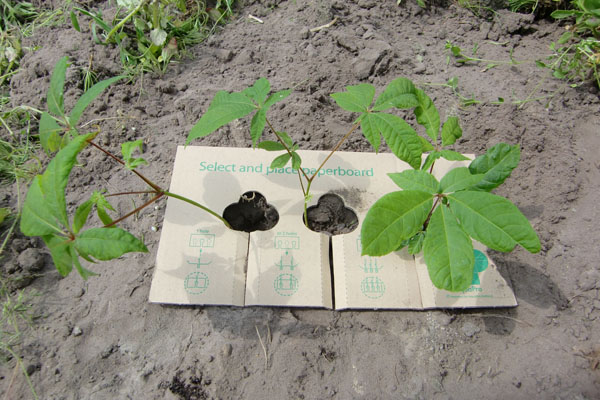

You can also plant 3 trees | |
 |
Three trees detail | |
 |

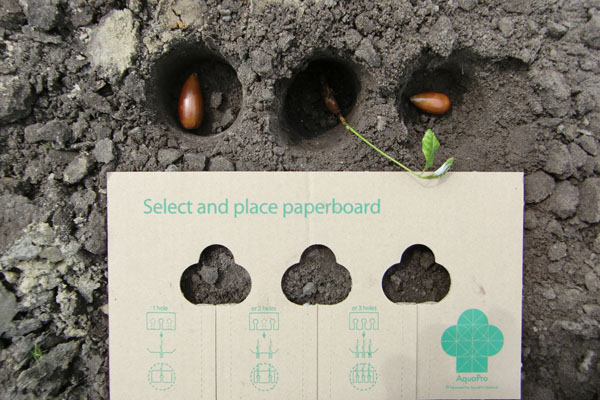

You can also make a combination of a plant in the middle and two seeds on the outsides | |
 |
The planting hole of the plant needs to be deeper than the two planting holes of the seeds | |
 |

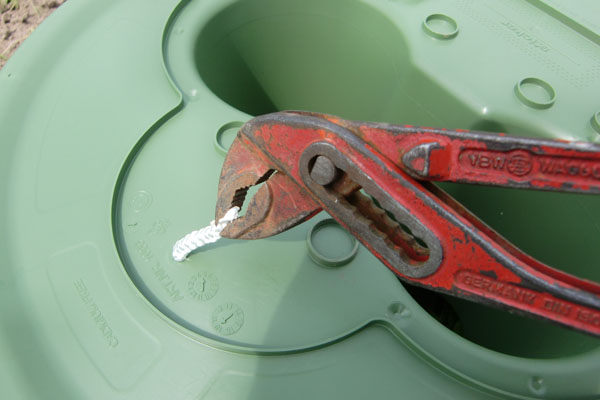

Planting is done and you put the wick in the hole in the bottom of the waterboxx with both sides equal length | |
 |
The paper board covers the area that's not covered by the bottom to prevent evaporation of water. With the box you can even plant very weak saplings | |
 |
This is the dimension of the paper board | |
 |

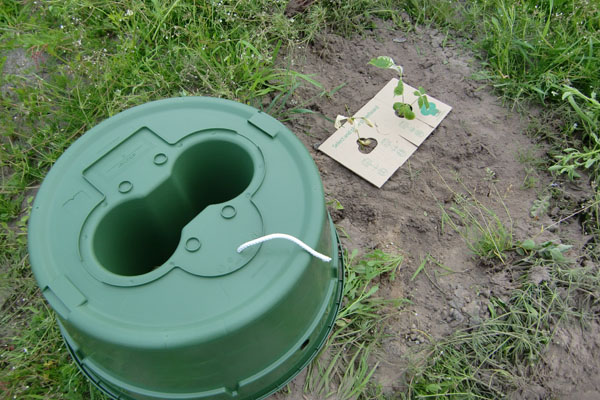

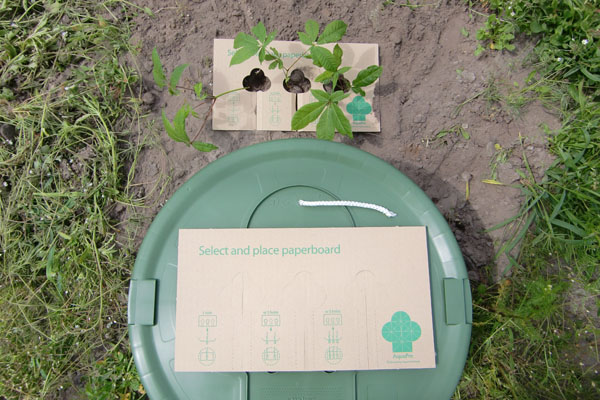

When you put the box over the plants, make sure that the wick is in the length aside of the carton | |
 |
Click the windprotectors in the opening | |
 |

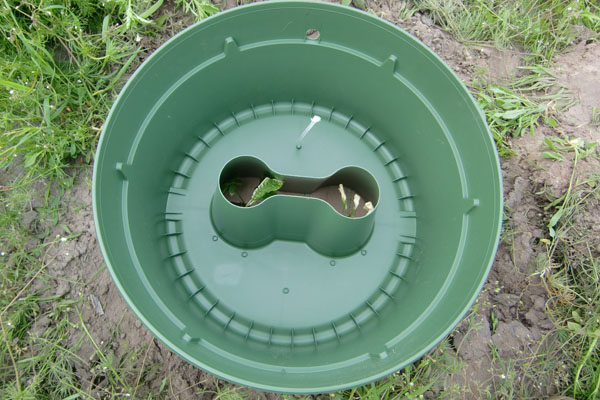

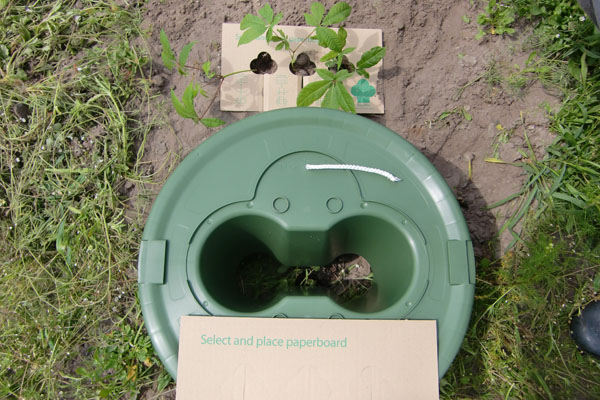

Put the box over the plants without damaging them | |
 |

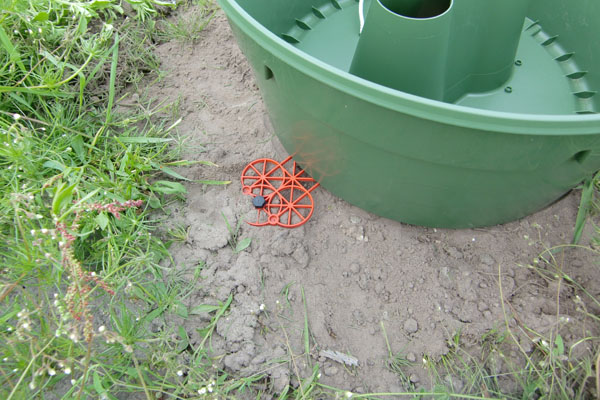

Nail the windprotector | |
 |

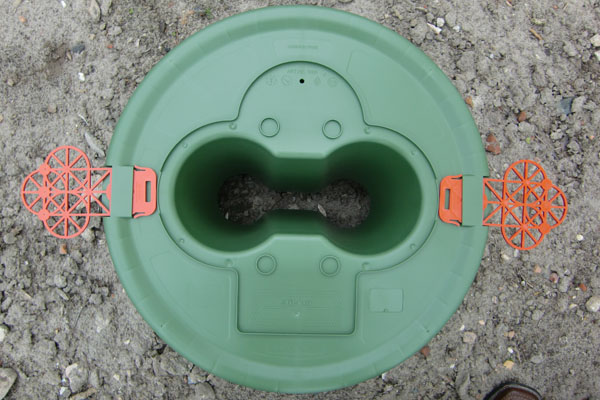

The windprotector is fixed | |
 |

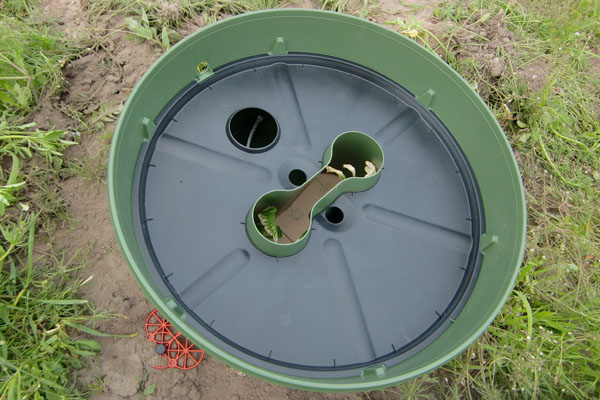

Put the isolation plate in the waterboxx | |
 |

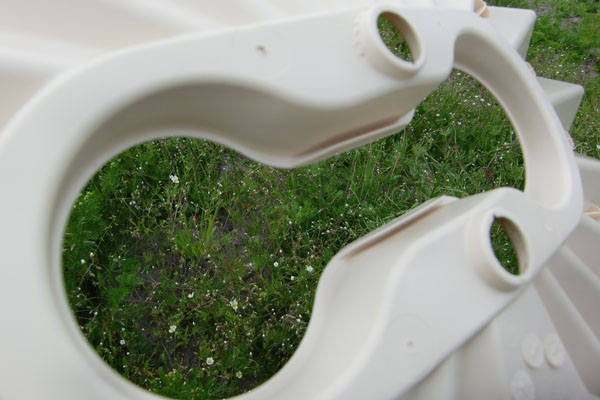

The cover has edges to fix the sides of the center of the box | |
 |

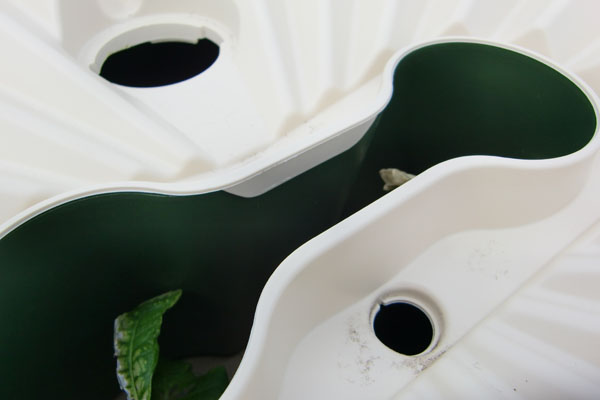

The sides of the center are fixed well | |
 |
Click the cover on top and then add soil at the side to prevent evaporation of water | |
 |
Give water in a way that app. 16 liters (4 gallons) enter the box and app. 4 liters (1 gallon) enter the central opening | |
 |

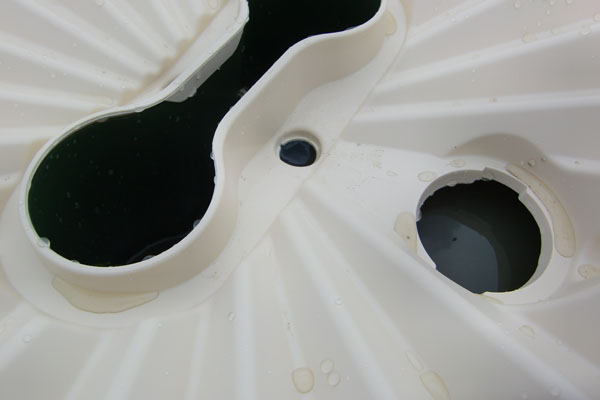

Fill the box completely | |
 |

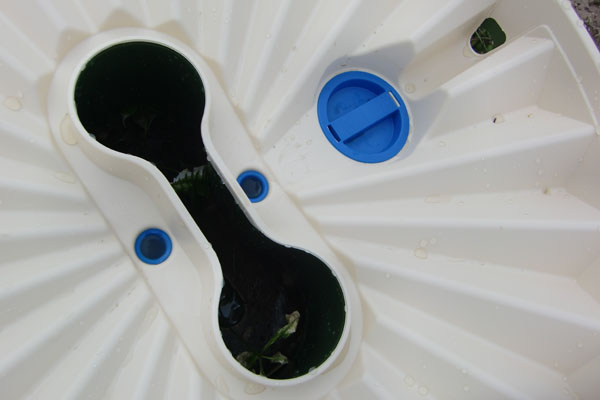

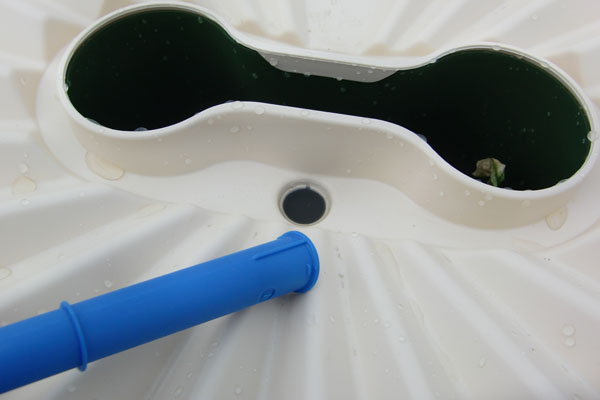

Put the sifons in the correct way so that the edge fits in the saving and push it well until you feel a click | |
 |
Close the box with the cap | |
 |

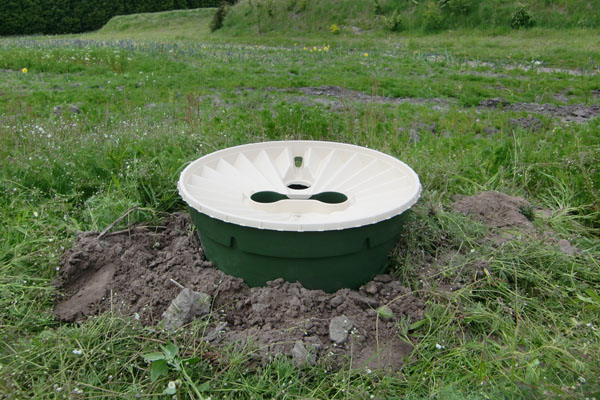

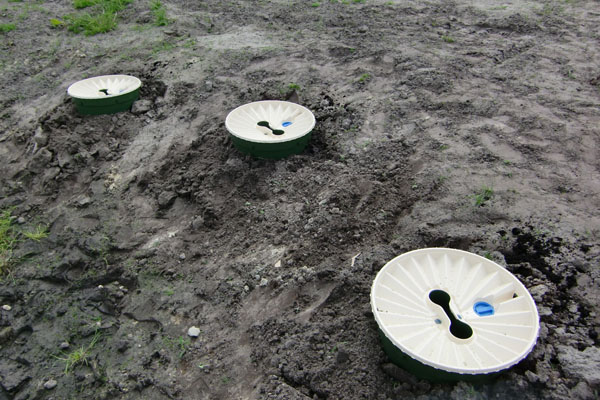

Done! | |
 |
I wish you a lot of success with planting |
